48V 60V 72V 3300W-5000W 100A Ebike Programmable Intelligent Control System Kits: 100A Sine Wave Controller+Colorful Display+Hydraulic Disc Brake+Throttle+PAS+Alarm+Bluetooth

Package Includes:
1. 36 MOSFET 100A 48V, 60V, 72V Universal Voltage 3300W-5000W Intelligent Programmable Sine Wave Controller

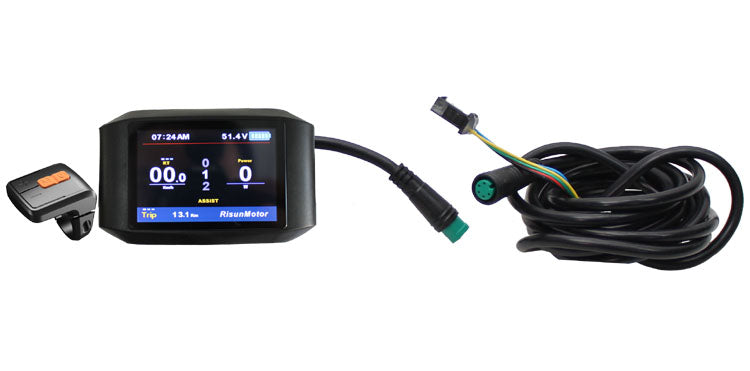

2. 48V, 60V, 72V Full color TFT RSM-750C Display (with 5-level PAS, Speed Limit, Speed Display, Voltage Selection, Start Mode, Regenerative Braking Function)
3. Risunmotor RM-D700 Hydraulic Disc Brakes, cut off power
4. Twist Throttle
5. Pedelec Assistant Sensor/8 Magnetic PAS Drive
6. Alarm System|Remote start + Alarm + Motor Lock
7. Bluetooth module

Attention:
This controller kit is for normal ebikes, but since the controller is designed for our FC-1 eBike, if your motor can't work properly, please kindly swap Blue and Green wires of both 3-phase and Hall Sensor (Yellow wire doesn't change).
Your Battery BMS should support max continuous 100A discharge current.

Carton Size: 43*21*21cm
Gross Weight: 4.4KG (with carton)

Controller Advantage:
1.Programmable Sine Wave Controller which support big current and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience
2.Motor torque ripple is reduced to minimum through FOC, more smooth and comfortable
3.Universal Input Voltage Range: 48V/60V/72V
4.Work with or without display
5.Parameter setting via Mobile Phone App or Computer
6.All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
7.Multi functions: Smart match with different motor, 5-speed level for throttle and PAS, Speed limit, reverse, anti-thief, Regenerative Braking, Electric Braking, Keyless start and etc.
8.Best heat sinking with thicker Heat sink Aluminium Plate
9.Anodized Aluminium Controller Case against scratch

Technical Data:
General Specification:
Power supply: 48V/60V/72V, MAX DC current: 100A, Max phase current: 250A
Rated Power: 48V 3300W/ 60V 4200W/ 72V 5000W
Peak Power: 48V 4800W/ 60V 6000W/ 72V 7200W
Low Voltage Protection: 40V/50V/60V
Brake: Low Voltage Brake
Alarm: Low Voltage Alarm
Rotor Position Detecting Method: Hall sensor
Mobile phone App can communicate with the controller to modify parameter

Size: 275x121x62mm
Net Weight: 2.05 kgs
Waterproof Grade: IP65

RisunMotor programmable sine-wave motor controller works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control. Our designed friendly interface of the programmable motor controller makes you set the parameters, conduct the tests and obtain the diagnostic info easily and quickly.

FOC-180° sinusoidal drive controller applied to BLDCM or PMSM.
It takes only 2-3 minutes for the motor to be well matched on its best electronic angle at the first time.
The motor torque ripple will be reduced to the minimum, so as to ensure electric vehicle to run without any noise and vibration, smoothly, and comfortably.
The precise current ring can provide accurate torque input to meet the requirement of large torque output during vehicle starting and climbing.
The controller enjoys high efficiency due to space vector converter control algorithm which can effectively reduce the temperature rise of controller and extend battery life mileage
Built-in various protection: locked-rotor protection, over-current protection, overload protection, over-temperature protection, speed protection, over-voltage protection, under-voltage protection and so on, effectively ensuring the safety of electronic control system and vehicle.
System status and fault intelligent management system can effectively monitor the current system operating mode external input state, the case of system failure, and the LED flashes at the same time to facilitate the diagnosis and maintenance.
Multi peripheral interfaces: reverse, cruise, anti-theft electronic brake, etc.
Parameter modifications and settings are available through Mobile phone via Bluetooth
CAN BUS is optional to communicate with body instrument and BMS

RM-D700c Hydraulic Disc Brake (Can Cut Off Power) For Electric bike Controller
24/36/48V/60V/72 Universal Voltage
Model: RM-D700c
Front Brake Oil Tube Length: 100cmRear Brake Oil Tube Length : 162.5cm
Length of cable 165cm, for bulk order we can customize the length of the cable for customers
Lead mode: Two-wire

FAQ:

1. Can I use this controller without display?

Yes, you can use this controller without display, just need to connect jumper connector (Please check Controller Connection Diagram, Page 3, point No.5)

2. Why when I turn on Display, it always show "Error 30H"?

Please kindly check whether you also connect communicaton plug (Please check Controller Connection Diagram, Page 6, point No.12)

3. Why when I connect Bluetooth Module or USB Cable, it always show "Connection Failure"?

Please kindly check whether you disconnect communicaton plug (Please check Controller Connection Diagram, Page 6, point No.12), and also reconnect Bluetooth Module or USB Cable to ensure good connection.

4. If I want to use your controller work with my motor, what shall I do?

To get best efficiency, we recommend you to match your motor with our controller firstly (Please check Controller Manual-APP Version, Page 5-9, or check Controller Manual-USB Cable, Page 6-7)

Manual and Driver Program Download:

1. Common Error Code Definition and Solution Download

2. Controller Connection Diagram Download

3. Controller USB Connection Driver, Application Program and Manual (Controller connect with computer by USB Cable)

(1). USB Driver Download:

      Controller USB Connection Driver Download (32bit)

      Controller USB Connection Driver Download (64bit)

(2). Controller Application Program for Computer (connect by USB Cable) Download

(3). Controller Manual Download (Computer Version connect by USB Cable)

(4). Controller Setting and Motor Pairing Video

4. Controller Manual/ Bluetooth App Manual (Controller connect with mobile phone by Bluetooth Module)

(1). Controller Manual Download (APP Version connect by Mobile phone Bluetooth)

(2). Bluetooth Module Manual Download

5. TFT750C Display Manual Download

6. UKC-1 Display Manual Download
